Smart Clip original

smart-clip, smart, clip, motorola, unlock
Price: 256.86 USD
Smart Clip Update to version 2.25!
This update adds a models V235, L2 to the list of supported. Such phone could be unlocked using Unlock via Testpoint option of SmartMoto.

Smart Clip is the newest Clip on worldwide market. Right now it is only a Clip, but soon JTAG for Motorola phones will be added (free of charge) and then you can repair phones with lost boot zone, repair phones using full flashing or test CPU/RAM/FLASH. Right now it's for sure in Clip category since it's multifunctional device FULLY UPDATABLE FREE OF CHARGE to support new models of C3xx, Exxx and Vxxx. Name "Smart..." also fits to this product perfectly - it's very smart since you can upgrade it in real-time using ActiveX via web browser in just seconds - you connect Clip via special LPT cable with computer and then run a webpage (special component will automaticaly check newest SW version and if available upgrade your Clip to support newest phones). No PC, no disassembling or special technical knowledge needed just connect cable to phone and press RED button.

Currently supported phone models:
New models and versions require opening phone and test point solution. All diagrams and descriptions you can find on producer's website.
    MOTOROLA:
  • E1, L2, L6, L7, U6
  • A1000 - also boot version 0.6.3.2 (01.02.11), M1000
  • A630, A830, A835, A845, A920, A925
  • E770, E1000, E1070
  • T280, T280i, T720-T720_G_05_08_81R, T721, T720i, T722i, T725e
  • V60, V60i, V66, V66i, V70, V80
  • C115, C116, C155, C156, C157, C236, C250, C260, C266, C268, C330, C331, C332, C333, C334, C335, C336, C350, C350l, C350L - R312ULS_G_09.10.2CR, C350V, C353, C355V, C359V, C380, C385, C450, C450l, C550, C650, C651, C975, C980
  • E365, E380, E370, E375, E378i, E396, E398, E550
  • V3, V3x, V3i (R47A), V80, V150, V151, V171, V180 (incl. R364_G_0B.D1.1CR), V186, V188, V190, V191, V220 (incl. R365_G_0B.D2.0.FR, R364_G_0B.D1.1FR), V226, V235, V300, V303, V330, V355, V361, V400, V500, V505, V525, V525M, V535, V545, V547, V550, V551, V557, V600, V620, V635, v975 (ver R245_xxx), V980, V1050
    Including:
    Vxxx (Boot Loader ver 8.23) including V3 Rogers Canada
    C975/V980/E1000 - Boot Loader 0.6.1.2 ( beta / not all versions tested )
    V3 (R374_G_0E.40.96R)
    SENDO:
  • snd2xx, snd3xx (incl. snd360 s360), snd5xx (incl. snd570 m570), snd6xx (incl. snd600 p600/s600), snd8xx
Software for upgrade:


Special features:
  • Smart-Clip gets even Smarter! Now it will record the history of unsuccessful unlock attempts and read the firmware of mobile phones. "Smart-Clip Reader" utility has been added to Smart-Clip toolkit. It can retrieve the history of unsuccessful unlock attempts and phone firmware. The purpose of this utility is to facilitate the support process and make it fast and efficient. Customer can now send flash files of unlocked phones to our R&D Dpt. This way unsupported phone models can be added to Smart-Clip list on a frequent basis.

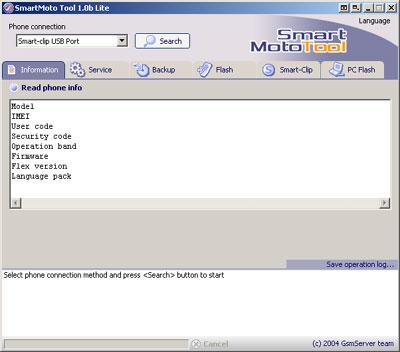

    Now Smart Clip has special FLASH and SERVICE features added to work with PC computer like:
  • Backup full flash - The function is implemented for fully safe SmartMoto tool operation with Your Motorola phones. With the backup files you upload our team continuously replenishes flash files database
  • Restore full flash - You can always restore your phone to initial state using this function and previously made backup file.
  • Auto backup/restore security area - For those models where security area does not restore it will be autosaved while entering boot mode. If needed this zone can be restored with restore security area function.
  • Read phone info - You can get full information on your phone, namely: Model, IMEI, User code, Security code, Operation band, Firmware, Flex version, Language pack
  • Flashing - Simple phone flashing
  • Repair flashing - Full phone flashing (including EEPROM zones) by a working flash file. Repair flash files are prepared by Smart-Clip developers team and put out for Smart-Clip users on our server. In phones with unrestorable security area it will not be changed during flashing





    Specification:
  • remove simlock in few seconds by only pressing one button on Clip
  • free upgrades for Cxxx, Exxx, Vxxx series
  • no PC needed for work

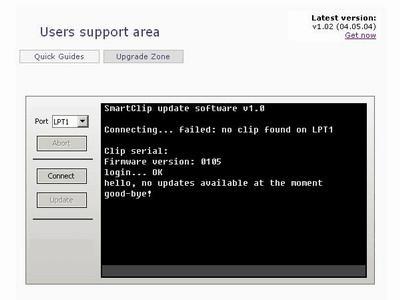

  • real-time updates are made using ActiveX via Internet in few seconds
  • dimmensions: 86 x 66 x 32 mm
  • voltage AC 9V, 50 mA
  • aluminium cassing

    Package contains:
  • Smart-Clip
  • cables for:
    -series V
    -series C
    -Motorola E365
    -Motorola C115 C116
    -Sendo S200/P200
    -Sendo M550
  • Battery connector
  • warranty

    After purchase you must connect it to PC using LPT cable (cable not included), enter producer's website and update smart clip to the newest firmware version. To connect to PC please use simple parallel cable which can be bought in any computer shop. Updates are FREE of charge.
